Hi all,

I tried to build a midi-mapper for the Numark Orbit, a wireless dj/vj controller.

• The node only works in combination with the vvvv.json mapping file included in the zip file, which you can open and use with the Numark Orbit Editor(downloadhttp://www.numark.com/ozone).

• Once you've opened the vvvv.json, you can see how I mapped the Orbit,feel free to change colours and behaviour, but don't change channels or notes, that will screw it in VVVV.

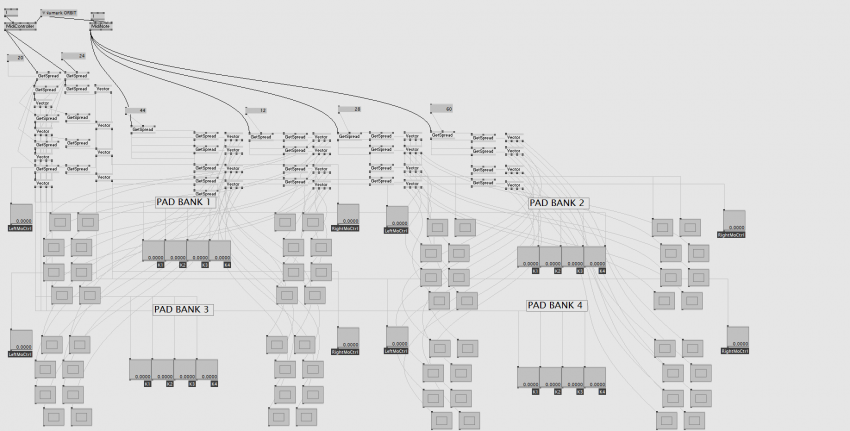

• The Patch: I tried to arrange it as logical as possible, just link the outputs to the desired inputs.

• I preconfigured the 4 Pad Banks in the following way:

  Pad Bank 1-3: PadBangs with 2 toggles at the inner lowest row
                K1-K4 are working as faders from 0-1, as well as the
                motion controllers.

  Pad Bank 4:   same as 1-3, but intended as color outputs, changeable
                in the Editor.


• The patch doesn't work when the Editor is opened at the same time.

It's not perfect, but maybe useful for some of you :)

have fun!
